FlowCursor

The FlowCursor feature visualises buy and sell pressure in an easy-to-assimilate, and unique way.

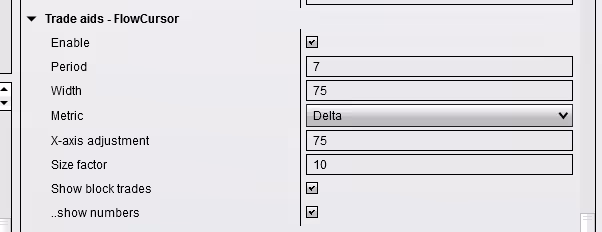

Here are the FlowCursor settings from the indicator properties

Enable turns on the feature. You will need some spare margin at the right of your chart for the display.

It is recommended to start with the other defaults and tweak if needed for your chart.

Width will adjust the maximum size of the markers.

X-axis adjustment allows you to move the display left or right

Size factor controls how much the display grows or shrinks with volume

Show block trades will also alert you visually to block trades happening in real-time

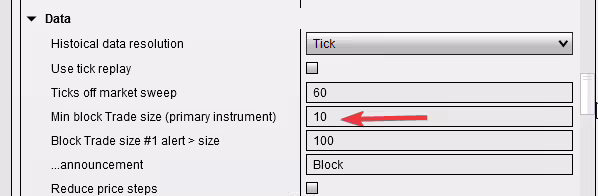

You will also need to set the minimum block trade size here to enable block tracking if you enable the block trade feature

Here is an example of the display when enabled on a chart, with most features showing
